Moore 06 Feed Switch
Take Control of Your Feed Lines

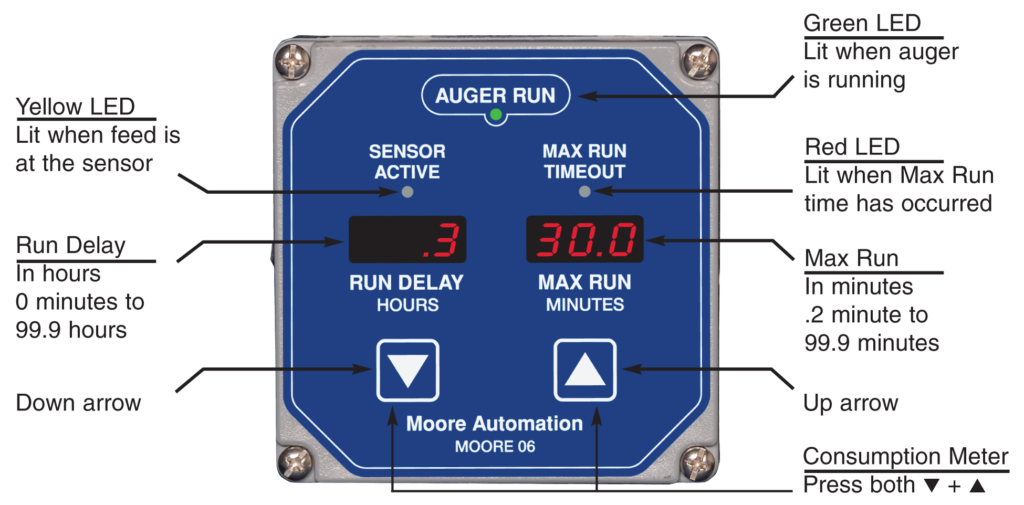

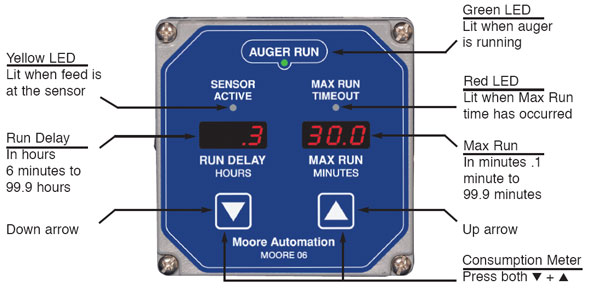

With the easy to use Moore 06 LED Control Panel
SETTING YOUR CONTROLS IS EASY
Run Delay (Hours)
Press and hold the down arrow key for 5 seconds, – - – will appear followed by a display of the present setting with the cursor flashing fast. To set the time, press the up or down arrow keys to achieve the desired time delay. Note: All settings below 1 hour are in tenths of an hour; refer to the chart for settings. After the desired time delay is set, wait 5 seconds. When the cursor flashes slow the new time will be accepted. The unit will now go into Run Delay. Wait for this time to expire or turn the power off then back on for immediate start.
Max Run Time (Minutes)
Press and hold the up arrow key for 5 seconds,- – - will appear followed by a display of the present setting with the cursor flashing fast. To set the time, press the up or down arrow keys to achieve the desired time. Note: these are in minutes and tenths of minutes. After the desired time is set wait 5 seconds. When the cursor flashes slow the new time will be accepted. The unit will now go into Run Delay. Wait for this time to expire or turn the unit off then back on for immediate start.
Consumption Meter
Another feature of the MOORE 06 is its ability to record the total amount of auger run time (in hours and minutes) for the past 24 hours. Press and hold both switches to display this value. The run time total is updated on a minute-to-minute basis.
The Moore 06 feed line control – MORE than just a feed line switch!
- Consumption Meter
- Cycle Timer
- Flag Feed System Control
MOORE 06 FEED SWITCH
The next generation feed line control
Built with the same dependability and longevity as all Moore Automation controls, this control has a PC board design that keeps the cost affordable without losing the integrity of the product. The unit now has externally adjustable time delay and maximum run timers, along with an accumulative timer, alarm contacts, and contacts for PC communications. The controls are enclosed in a Nema 4X watertight enclosure and can be mounted in a office, hallway, or next to the feed line motor.
This control is pre-wired for easy installation into any new or existing feed system and installations can be done in 30 minutes or less with no modifications necessary. A large digital LED display indicates the status of the switch and it is covered by a two year warranty.
This feed line control can be used in conjunction with or enhance any of the Moore Automation products.
